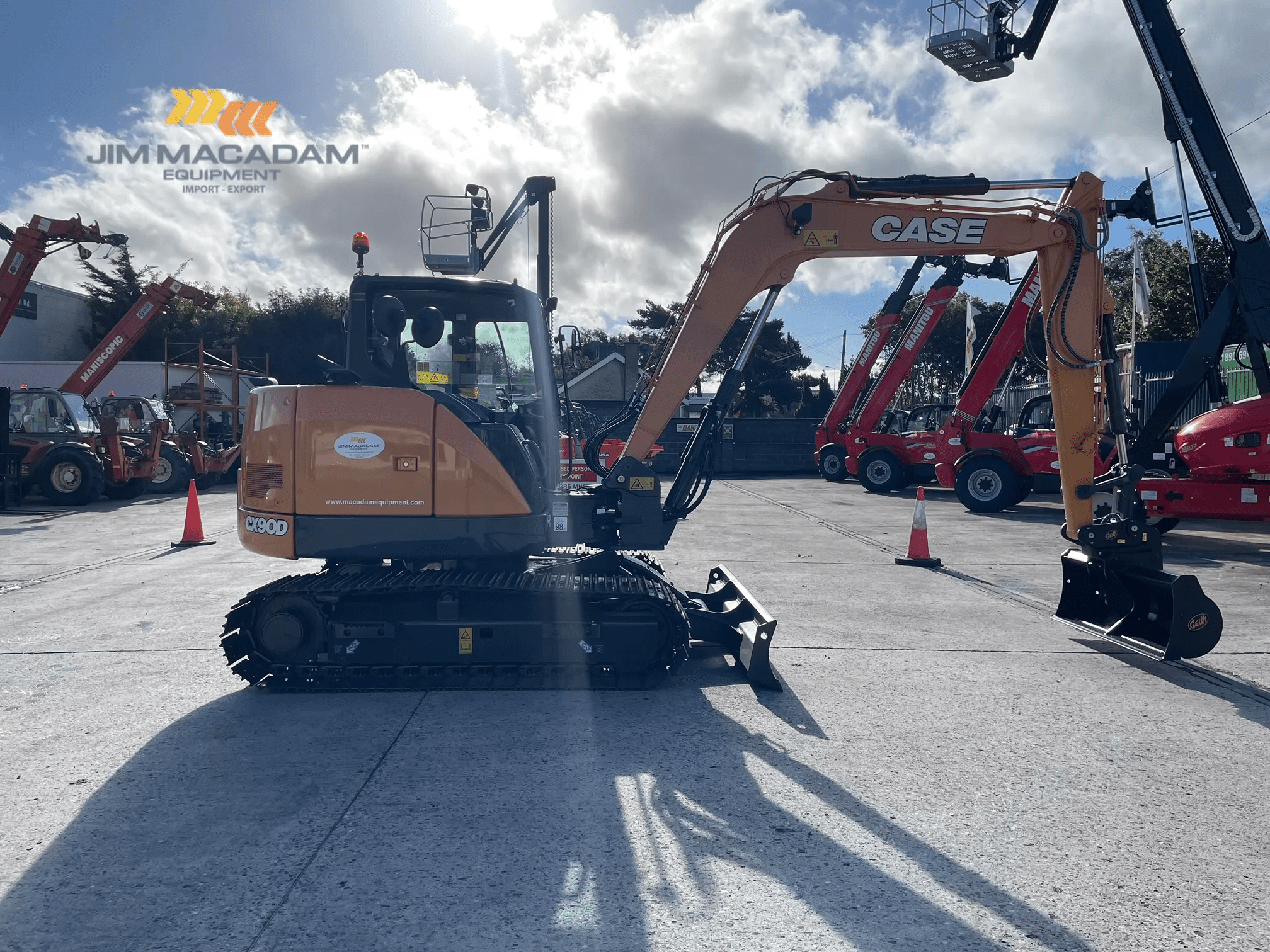

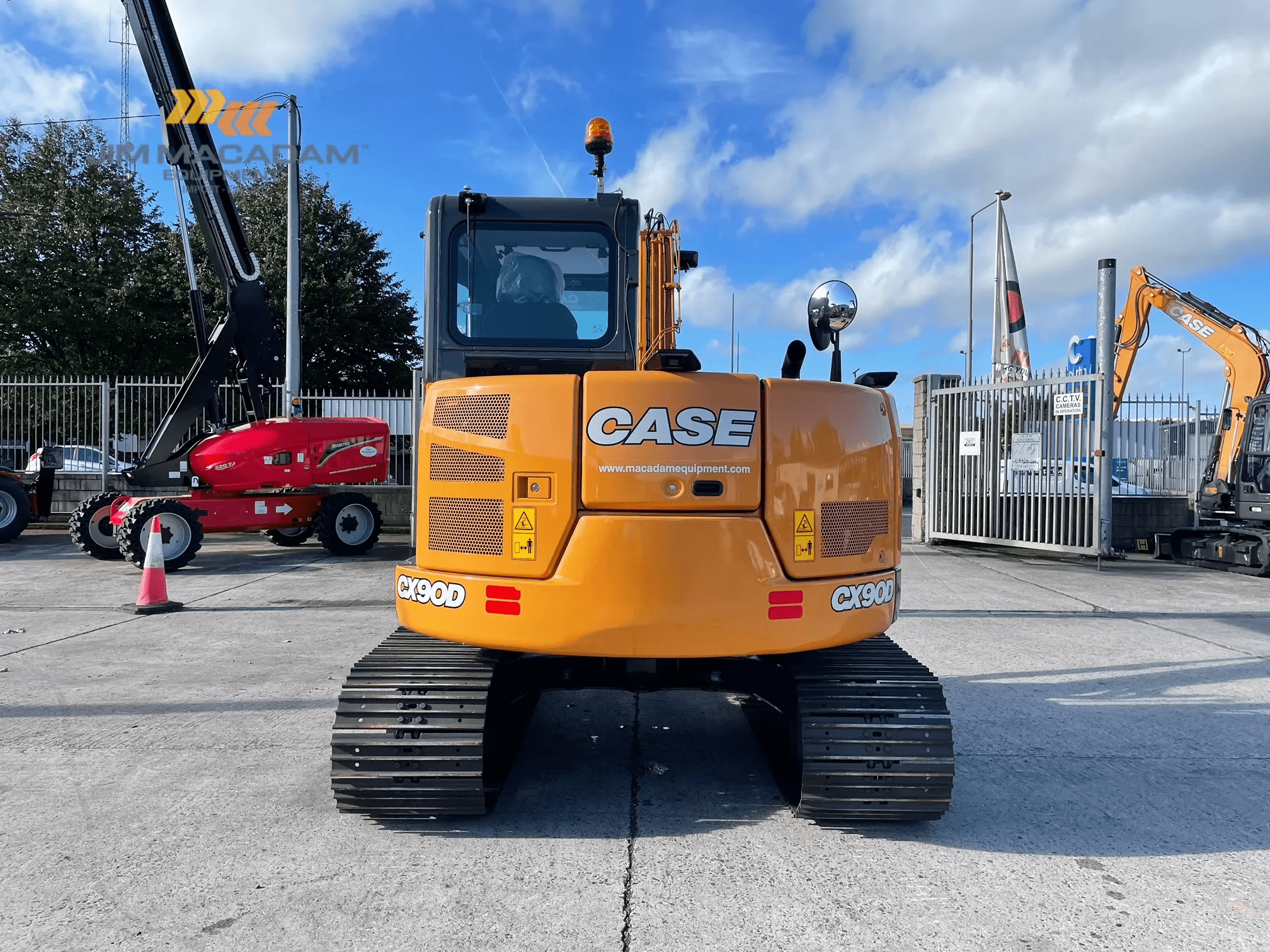

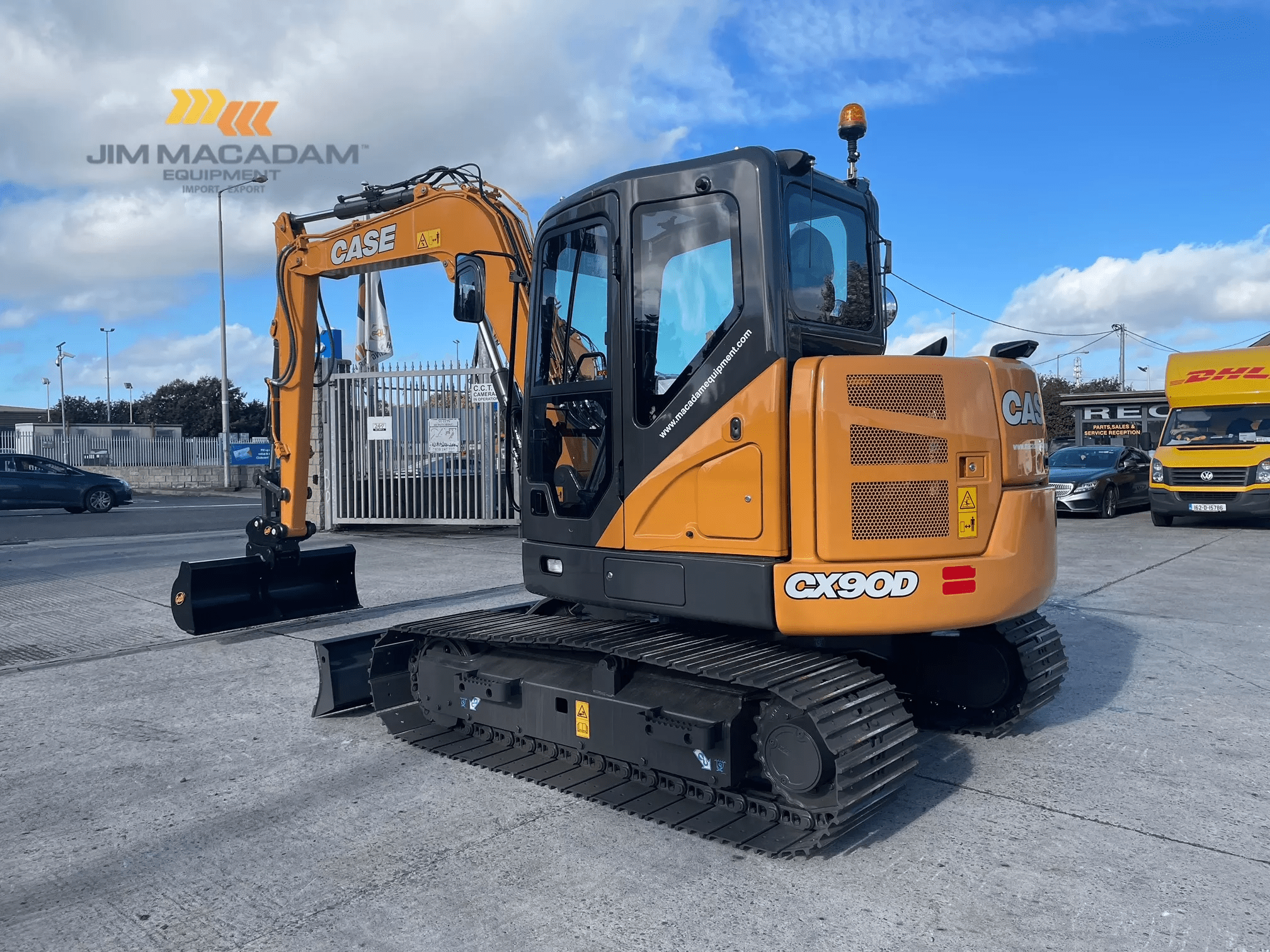

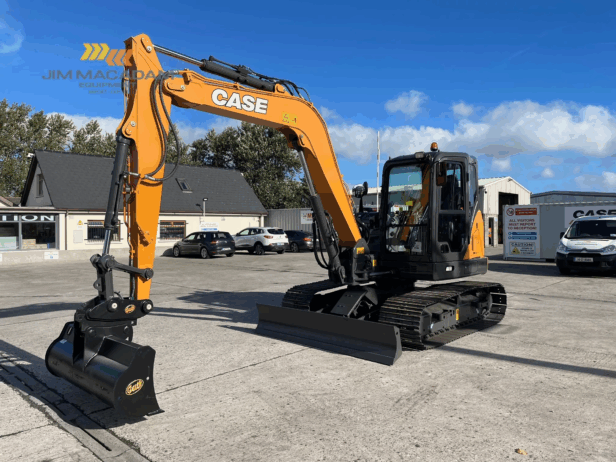

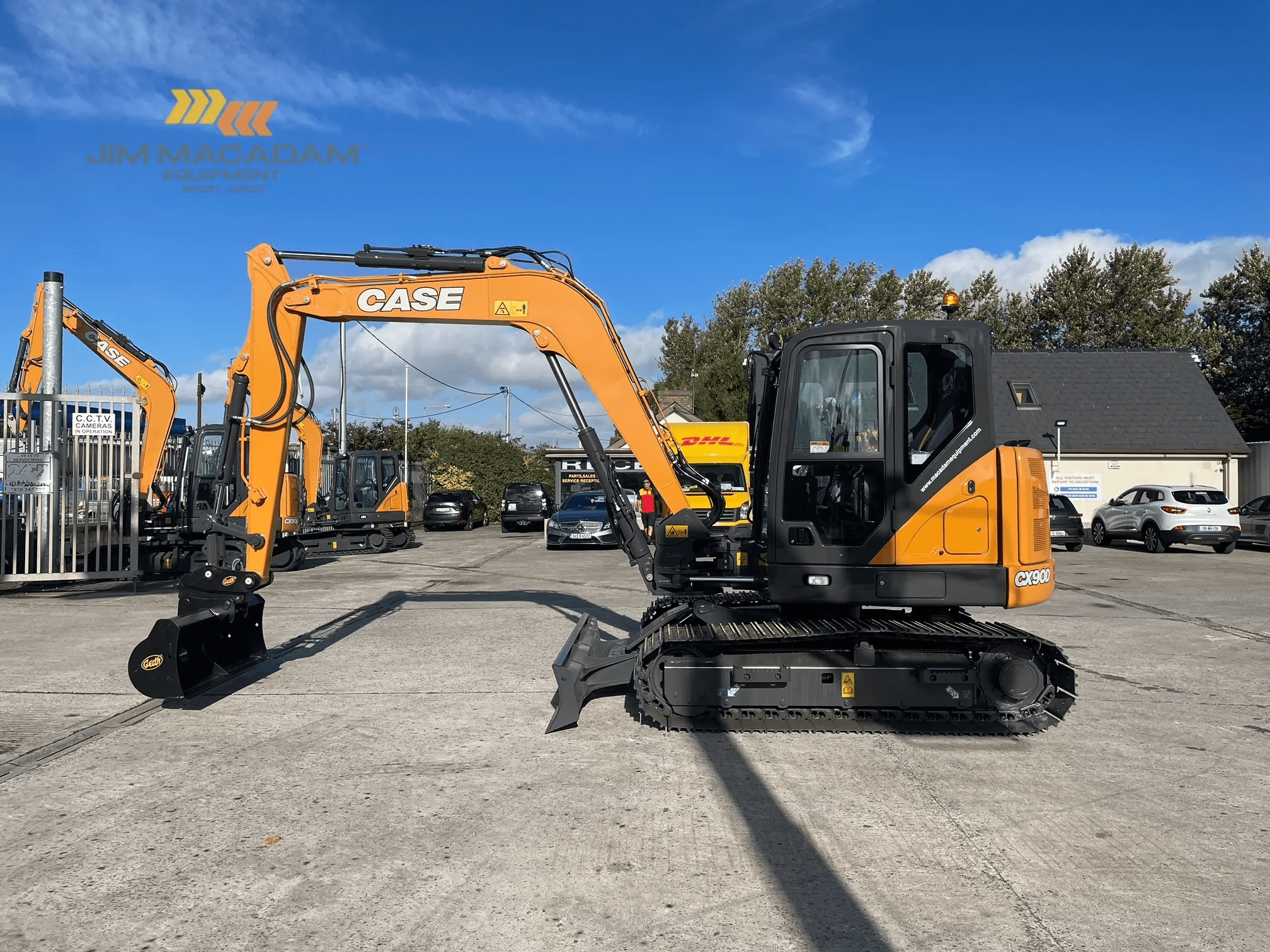

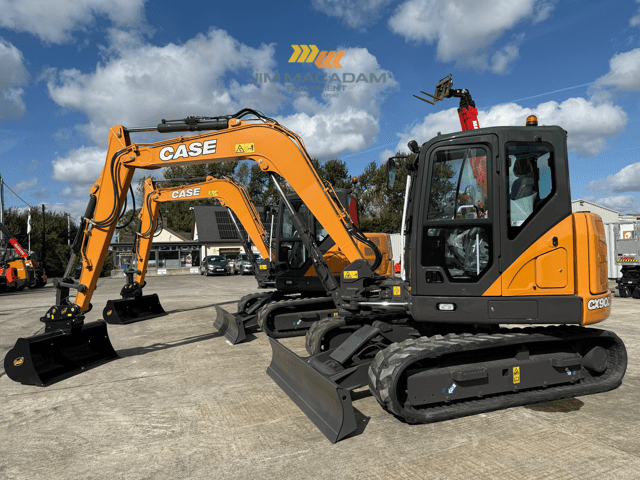

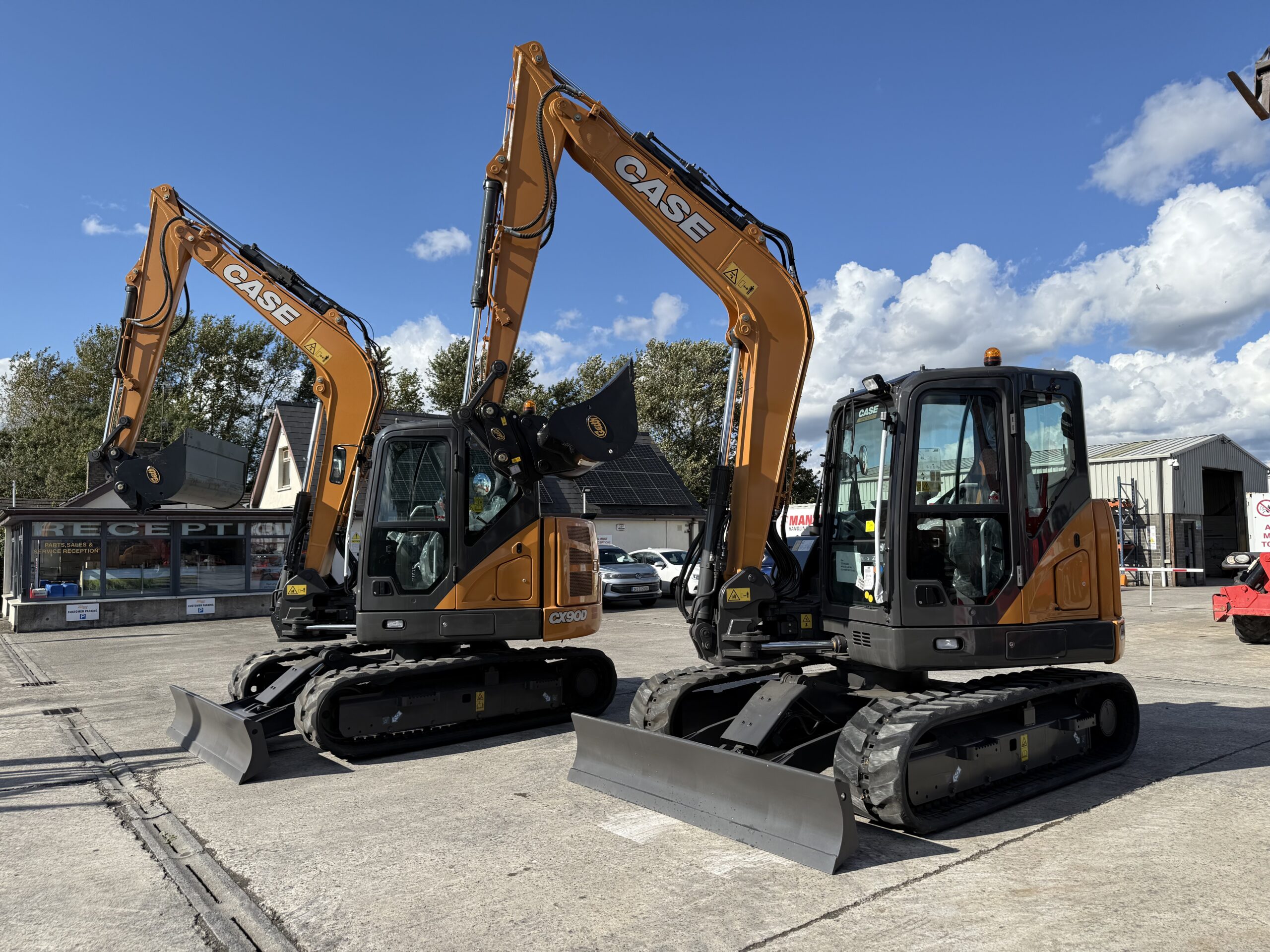

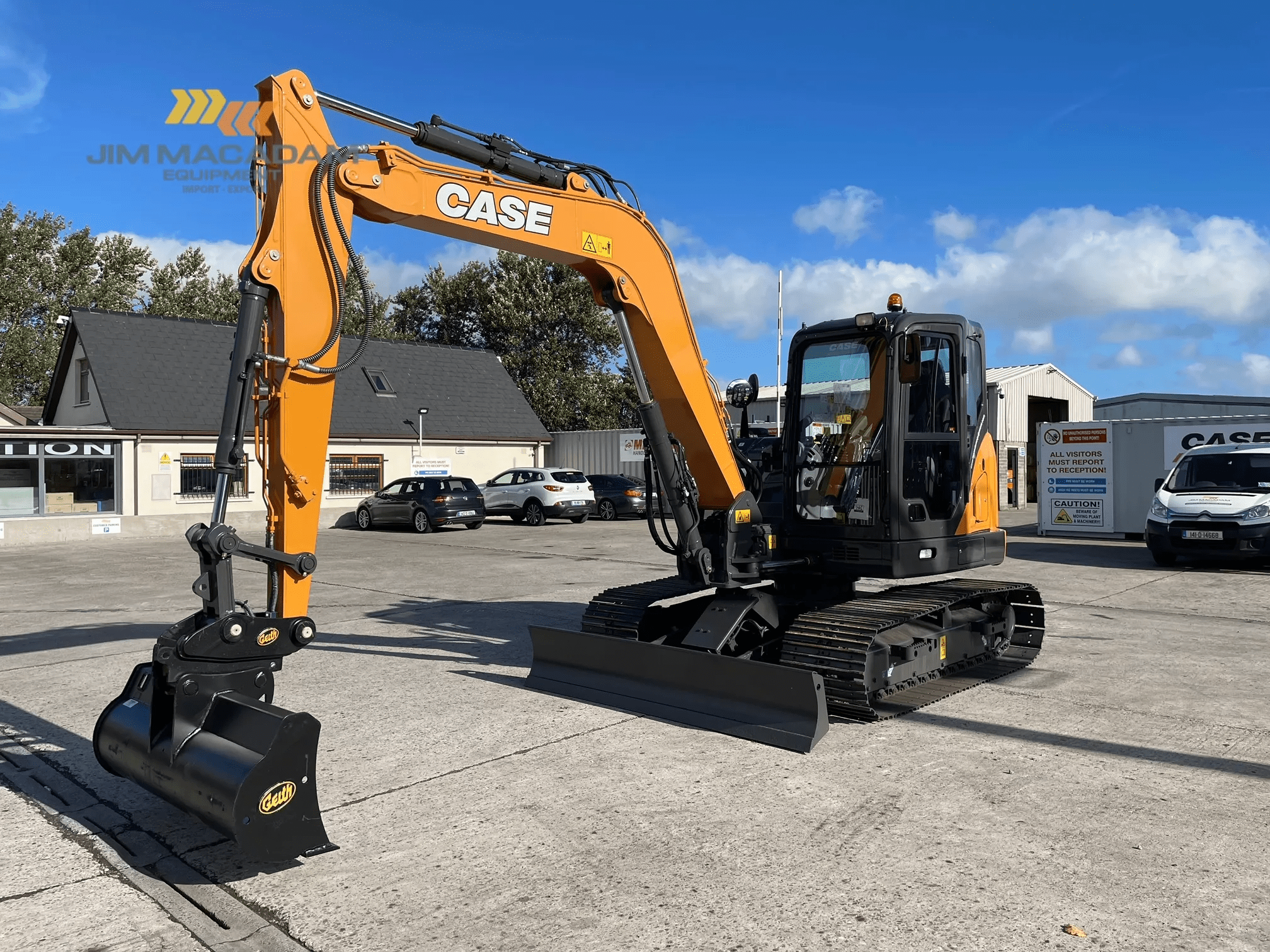

New Case CX90D MSR

Made In Japan!

Rear & Side Camera
Hammer Lines – Proportional Control
Safety Valves – Boom and Dipper
Air conditioning
Radio
Tracking Beeper
Electric Refuel Pump
450mm Rubber Tracks
Factory fit hydraulic quick coupler provision

NEW STAGE V ENGINE: THE MOST POWERFUL IN THE SEGMENT
20% more power (kw); 45% greater displacement; 56% more torqueThe new STAGE V engine is a highly reliable 4-cylinder 68 HP Yanmar engine, widely used in the market. It is the most powerful in the segment and meets the latest EU emissions standards that set a new limit for particle number(PN) and reduce further particulate matter (PM) levels.

More energy savings and more power with less fuel
The YANMAR engine works effortlessly and provides better support for the pump with higher torque even against high load pressure: the engine is less overloaded and uses less fuel (-4.5% in SP mode and -3.2% in H mode) confirming the best in class speed.

Swing boom version on CASE CX90D MSR
Excellent manoeuvrability and maximum reach. The generous swing angles (left 80° ; right 45°) combined with excellent visibility in every direction contribute to a great productivity

BEST IN CLASS LIFTING CAPACITY
Both CX85D and CX90D have the greatest lifting capacity in the industry.
The CX90D lifts 1800 kg (@4 m reach, 0cm from the ground, BLADE UP) according to ISO standards.

TOP CLASS BREAKOUT FORCE
The perfect balance between engine, pump, booms and undercarriage result in an impressive digging performance:– bucket digging force: 56.9 kN– arm digging force: 39.5 kN

HYDRAULICS SOURCED FROM BIGGER CASE EXCAVATORS
Three different working modes (SP, H, Auto) add more fuel savings without compromising on performance just like the higher range models of CASE heavy excavators.

THE CAB OF A LARGE EXCAVATOR
Everything in front of your eyes with extraordinary all-round view
The large cab with its huge glazed area provides outstanding visibility all round and on to the bucket or attachment allowing easier and safer operations.
